AS3 hopper

（Anti-scattering hopper）

Prevent sprues from scattering!

Due to the recent rise in resin prices and CO2 reduction, sprues recycling is once again in the spotlight.　Along with this, sprues recycling at molding sites has become mainstream on a one-by-one basis. However, are there any cases where the sprues dropped from the take-out machine into the crusher's hopper during automatic molding operation are scattered due to the rotational force of the crusher's blades? This type of sprues scattering is surprisingly common and often leads to complaints.

Do you know AS3 Hopper?
（Anti-scattering hopper）

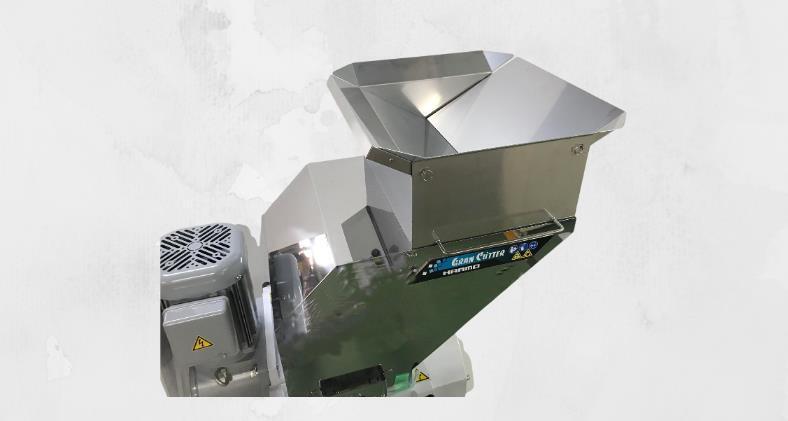

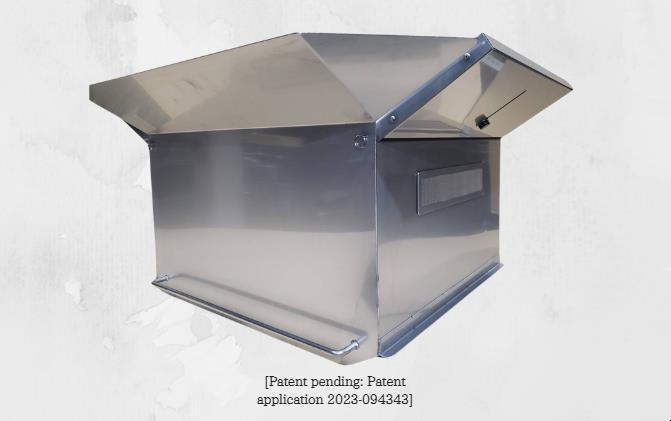

By placing AS3 hopper on the crusher
Helps prevent sprues from scattering!

■Features
・An anti-scattering hopper for plastic crushers that does not require electricity or air.
・Can be expected to prevent sprues from scattering during crushing.
・There are 6 compatible crusher manufacturers. Matches the size of the crusher hopper input port.
・You can set the strength of the star (opening/closing slide) as desired. (balance adjustment function)

news

We sponsored and exhibited at the Harmo booth at the 2023 IPF Japan International Plastic Fair.

2023 IPF Japan
We sponsored and exhibited at the Harmo booth at the 2023 IPF Japan International Plastic Fair. Despite being an impromptu reference exhibit, we received a great response. We received comments such as ``It seemed like it was there, but it wasn't!''
Compatibility with granulator

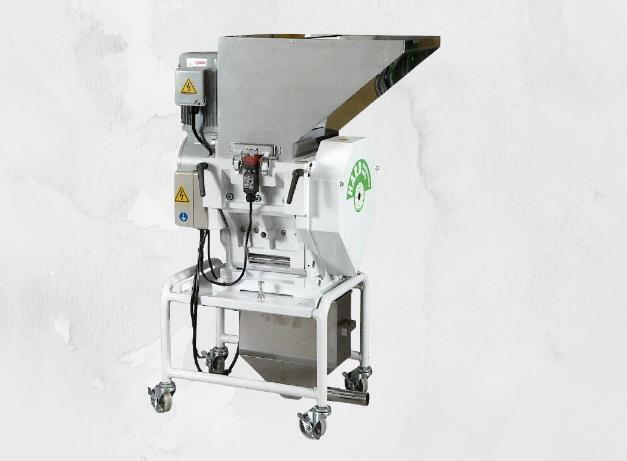

This time, we exhibited the AS3-SPCⅢ-C750, which can be installed on the Harmo granulator SPCⅢ-C750. It is compatible with granulation machines and has received rave reviews from many customers.

Is it still plastic cardboard?

  • The current trend in the world is that environmental improvements (inside and outside the factory) are also required, but are we still using plastic cardboard?
  • Moreover, even if you surround the hopper with plastic cardboard, it will start to shift right away!
  • Then, the plastic cardboard gradually wears out, and as a result, scraps fall into the hopper! This is foreign matter mixed in!
  • The plastic cardboard seems to cover the scattering, but in reality, it is actually scattering!
  • Even if your plastic molding machines and robots are clean, plastic cardboard will look bad and make your work site look dirty!
  • But up until now, there was no effective measure to prevent scattering, so I had no choice, but from now on, the AS3 hopper is the way to go!
  • ここをクリックして表示したいテキストを入力してください。

From now on, we will use AS3 hopper
to prevent scattering.

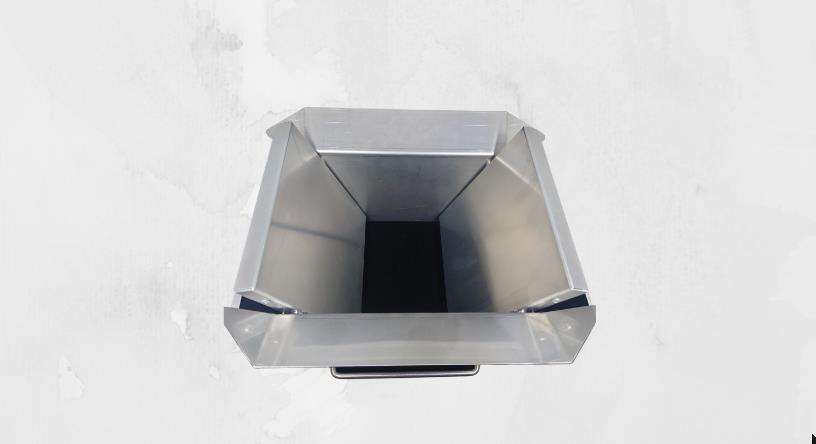

When the sprues dropped from the take-out machine falls into contact with the two vertically movable shooters at the top of the AS3 hopper, the sprues own weight lowers the shooters and falls into the crusher.

After the sprues weight opens the chute and the sprues falls into the AS3 hopper, the chute maintains its balance and returns to its original state and closes. If your sprues is lightweight, please use the "balance adjustment function" on the back of the shooter to make fine adjustments.

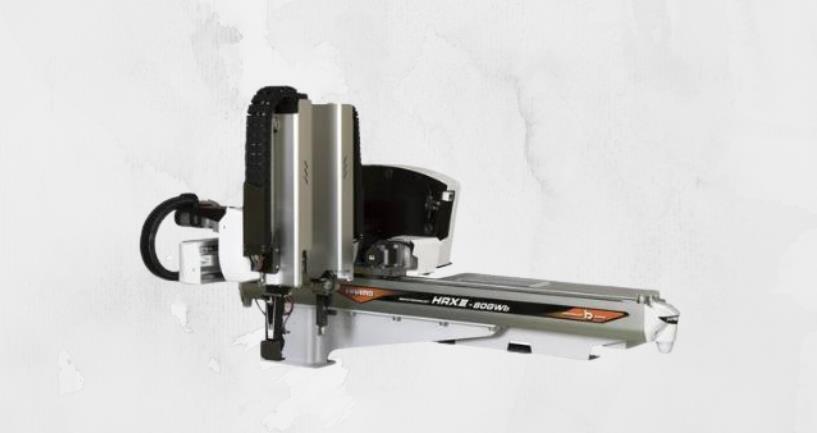

A traverse type is recommended for the AS3 hopper. Since the runner release position can be set arbitrarily, it is possible to drop the material into the AS3 hopper's shooter with pinpoint accuracy, and the shooter can be opened and closed easily, allowing for high- speed and accurate processing.

小見出し
ここをクリックして表示したいテキストを入力してください。テキストは「右寄せ」「中央寄せ」「左寄せ」といった整列方向、「太字」「斜体」「下線」「取り消し線」、「文字サイズ」「文字色」「文字の背景色」など細かく編集することができます。
  • 販売価格
  • 1,000円
  • （税込み）

This is convenient! Balance adjustment function

Adjusting the balance (sprues weight: 3g)

The crusher in the video is a Harmo granulator with 0.5 horsepower (400kw) and is crushing a 3g sprues. The balance adjustment function of the AS3 hopper is set to open and close once per shot. However, in order to slightly change the angle at which the sprues are dropped into the hopper, I put more effort into adjusting the balance of the shooter on the left side, and set only the shooter on the right side to lower. This is because if a long sprues causes bridging in the hopper of the crusher, the dropping angle must be slightly adjusted to avoid the bridging. Of course, it is also easy to open and close both shooters with the same balance.

What is the point of intentionally adjusting the balance incorrectly with the same sprues?

The balance adjustment function of the same Harmo granulator has been intentionally set to make it difficult for the shooter to open. In the fourth shot, the shooter finally opens under its own weight and you can see the sprues falling. However, this timing does not necessarily mean that it is no good. As shown in the previous video, the fact that the shooter opens once per cycle means that there is a risk that the sprues will fly off each time it opens. On the other hand, if you open and close the runner once every 4 shots, as shown in this video, the risk of sprues scattering will be reduced to 1/4. The balance adjustment function can also make adjustments like this!

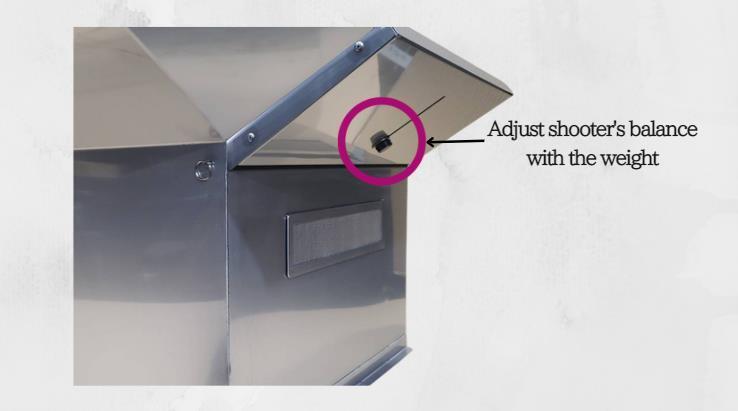

Master the balance adjustment function

Balance adjustment function settings

When a lightweight sprues falls into the AS hopper, the shooter may not lower as shown in the video above. In this case, adjust using the balance adjustment function. First, place the sprues on the shooter without opening, slide the "balance adjustment function" on the side up and down, and fix the "balance adjustment function" in the open position of the shooter. Apply this adjustment to the two shutters. However, if the lightweight sprues does not open even after adjustment, it will open and close in 2 to 3 shots instead of opening and closing in 1 shot.

Convenient setting method

As shown in the first video, you can adjust the insertion angle of the sprues. For example, for the shooter on the right, slide the balance adjustment downward to reduce the load, and for the shooter on the left, slide the balance adjustment upward to increase the load. By adjusting the fall angle with this balance adjustment function, you can apply a stronger or weaker load to the two shooters and finely adjust the launch angle of the sprues. Also, the timing of opening and closing can be adjusted.


小見出し

ここをクリックして表示したいテキストを入力してください。テキストは「右寄せ」「中央寄せ」「左寄せ」といった整列方向、「太字」「斜体」「下線」「取り消し線」、「文字サイズ」「文字色」「文字の背景色」など細かく編集することができます。
ボタン

Purchase process

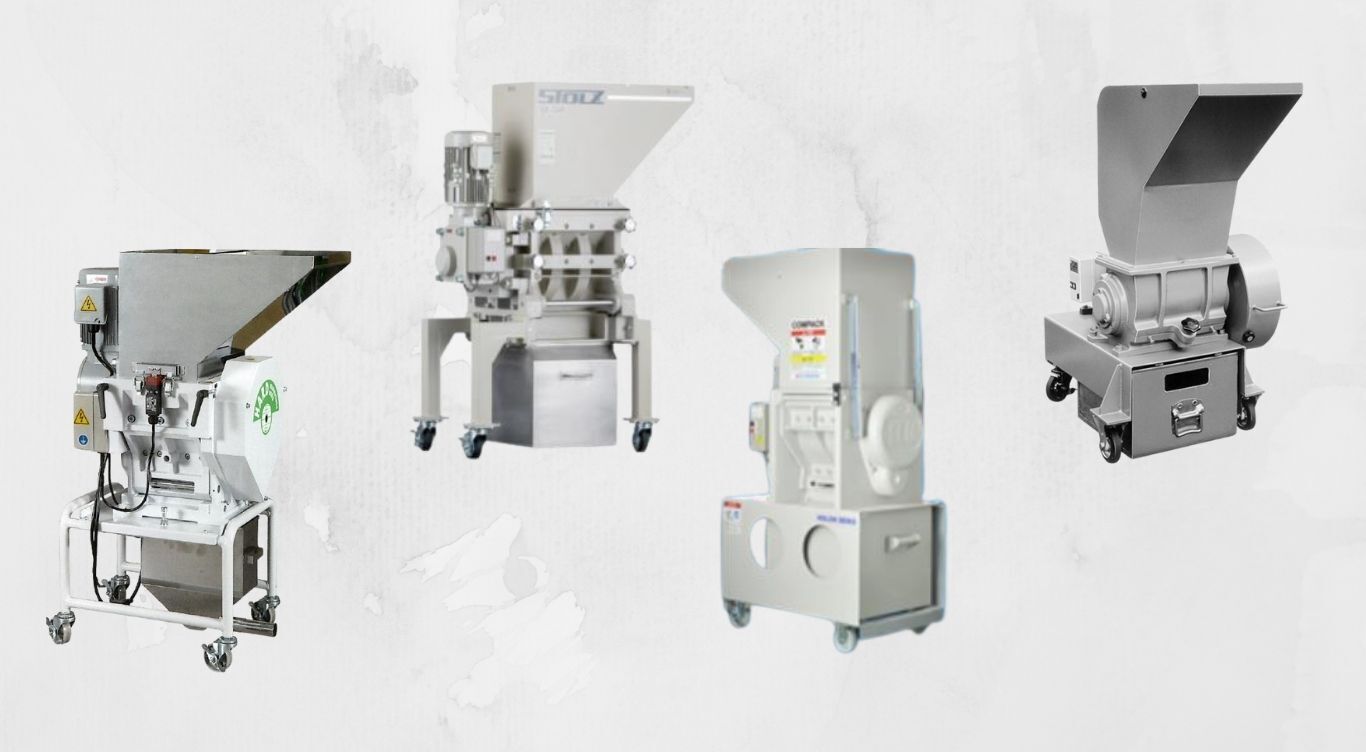

1:Check compatible crusher manufacturers
Currently, there are six manufacturers of crushers that we can manufacture: Storz, Horai, Holon, Matsui Seisakusho, and Kawata, mainly Harmo's granulator. Compatible with models up to 3 horsepower. However, if it is an old model or if the hopper part has dents or other damage, it may not be possible to install it.

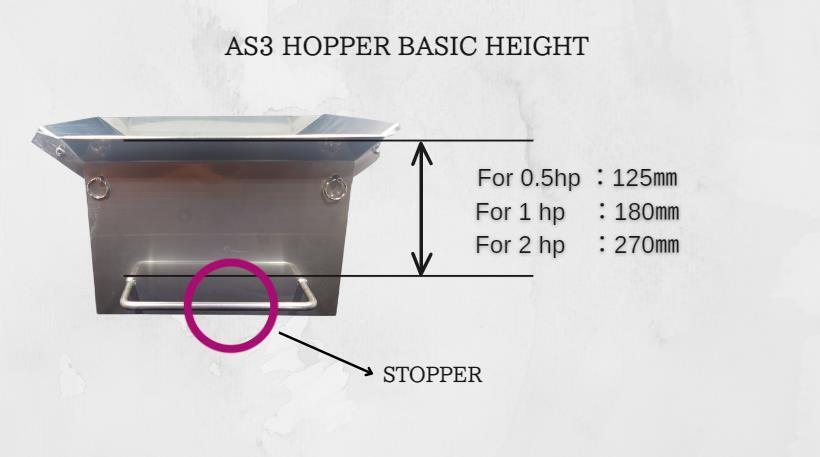

2:Overall height is specified in horsepower
Please refer to the image above for the total height of the AS hopper. The basic overall height is 0.5 horsepower to 3 horsepower. (2 horsepower and 3 horsepower are the same) If you wish to have a different overall height, it will be custom-made or an extension hopper will be installed as an option. For more information, please use the "Quotation Request Hearing Sheet" to request a quote!
3:Other conditions!
・Applicable crusher is within 3 horsepower equivalent
・The hopper opening of the crusher is square or rectangular.
・No special additional work has been done to the hopper frontage.
・The hopper part is not deformed or missing.
・Traverse type is recommended for takeout machine
小見出し
ここをクリックして表示したいテキストを入力してください。テキストは「右寄せ」「中央寄せ」「左寄せ」といった整列方向、「太字」「斜体」「下線」「取り消し線」、「文字サイズ」「文字色」「文字の背景色」など細かく編集することができます。
ボタン

AS3 hopper options

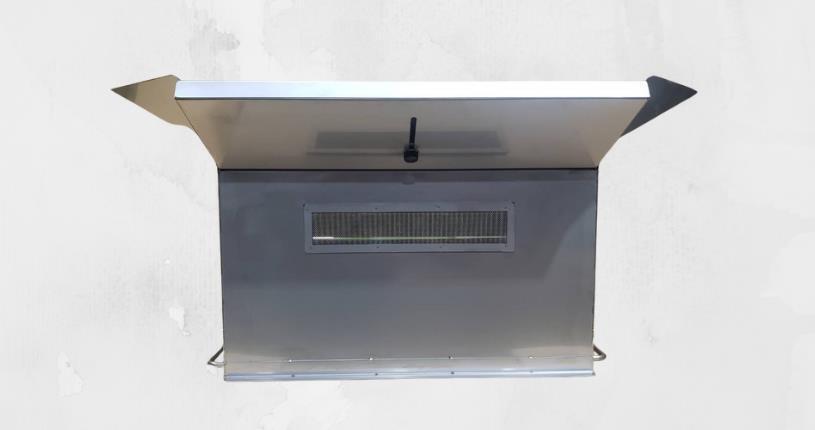

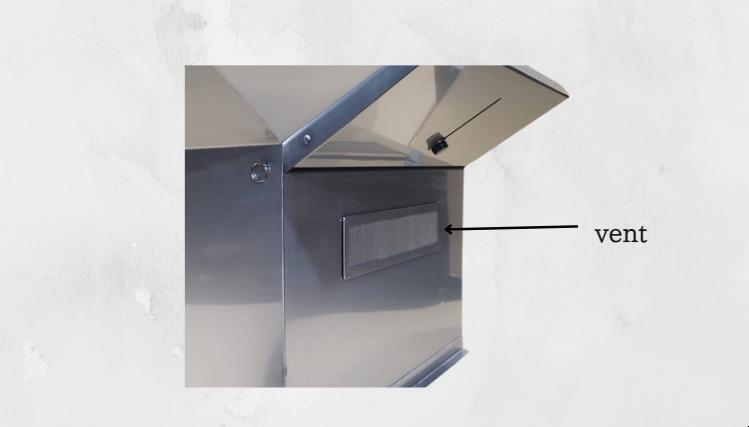

■vent
When the suction loader is turned on, the airflow flows from top to bottom, so in rare cases the chute (slide) may not close and open by around 10mm when the loader is suctioned. We recommend this option if you want to avoid this phenomenon.

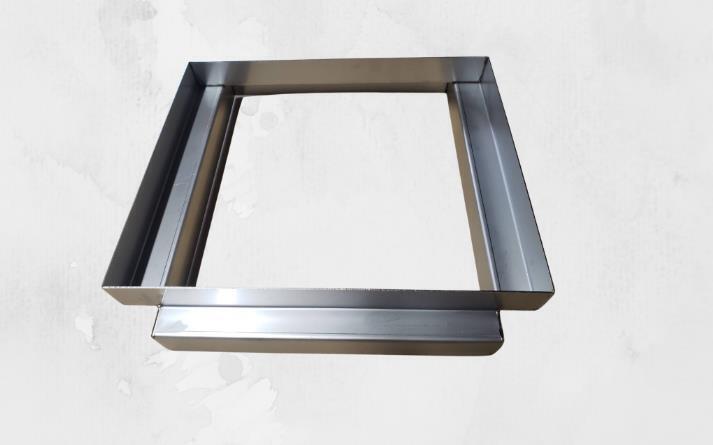

■extension hopper
If the sprues release position is set high with an oscillating take-out machine or a traverse-type take-out machine, the dropped sprues may come into contact with the shooter with force and bounce back, causing them to scatter. To avoid this bounce, raise the bottom of the AS3 hopper with an extension hopper.
■viewing window
If it is necessary to check the bridge of the sprues inside the hopper, a viewing window can be installed on the AS3 hopper. You can choose between double-sided and single-sided windows.

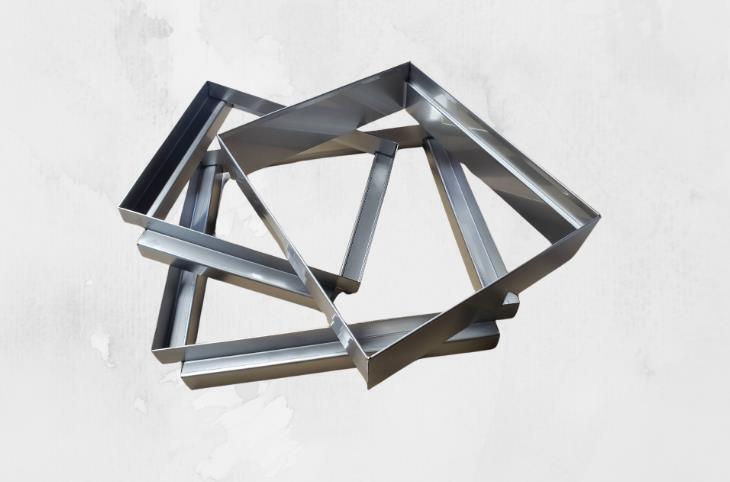

■attachment
If the contact points between the crusher body and the AS3 hopper have different specifications, we will measure and create an attachment to ensure compatibility.
小見出し
ここをクリックして表示したいテキストを入力してください。テキストは「右寄せ」「中央寄せ」「左寄せ」といった整列方向、「太字」「斜体」「下線」「取り消し線」、「文字サイズ」「文字色」「文字の背景色」など細かく編集することができます。
ボタン

Regarding quotation

Thank you for visiting the AS3 Hopper website. In order to provide the best products and services to our customers, we provide free estimates. If you would like a quote, please follow the steps in the inquiry form below.

At that time, please tap "Request a quote". We will then send you a ``quotation request hearing sheet.'' Please fill out the necessary information on the hearing sheet and return it via email.

To everyone who uses Harmo's "granulator"!

If you are using Harmo's "Grain Cutter SPC Series", please contact your local Harmo sales office directly.

Inquiries (Click here to request a quote)

フォームから送信された内容はマイページの「フォーム」ボタンから確認できます。
送信したメールアドレスでお知らせ配信に登録する
send
利用規約・プライバシーポリシーをお読みの上、同意して送信して下さい。

FAQ

■Worried about parts falling off

Our products are made from high-quality materials and undergo strict quality control and design. The shooter (opening/closing part) uses NSK bearings, and the balance adjustment function is designed to prevent parts from falling out of the box even if something goes wrong. We take every precaution to prevent parts from falling off so that you can use it with confidence.

■Will it fit your own crusher?

Currently, there are six manufacturers of crushers that can manufacture crushers: Harmo, Storz, Horai, Holon, Matsui Seisakusho, and Kawata, and they can handle models up to 3 horsepower. However, if there are dents or distortions in the hopper of your crusher, or if it is an old model, you may not be able to install it. If you have any questions, please feel free to contact us.

■What is the warranty period and durability?

The product warranty period is 1 year. In addition, the durability of our products will vary depending on usage conditions, but we are committed to providing high-quality products so that our customers can use them for a long time, but we ask that you perform regular maintenance.
